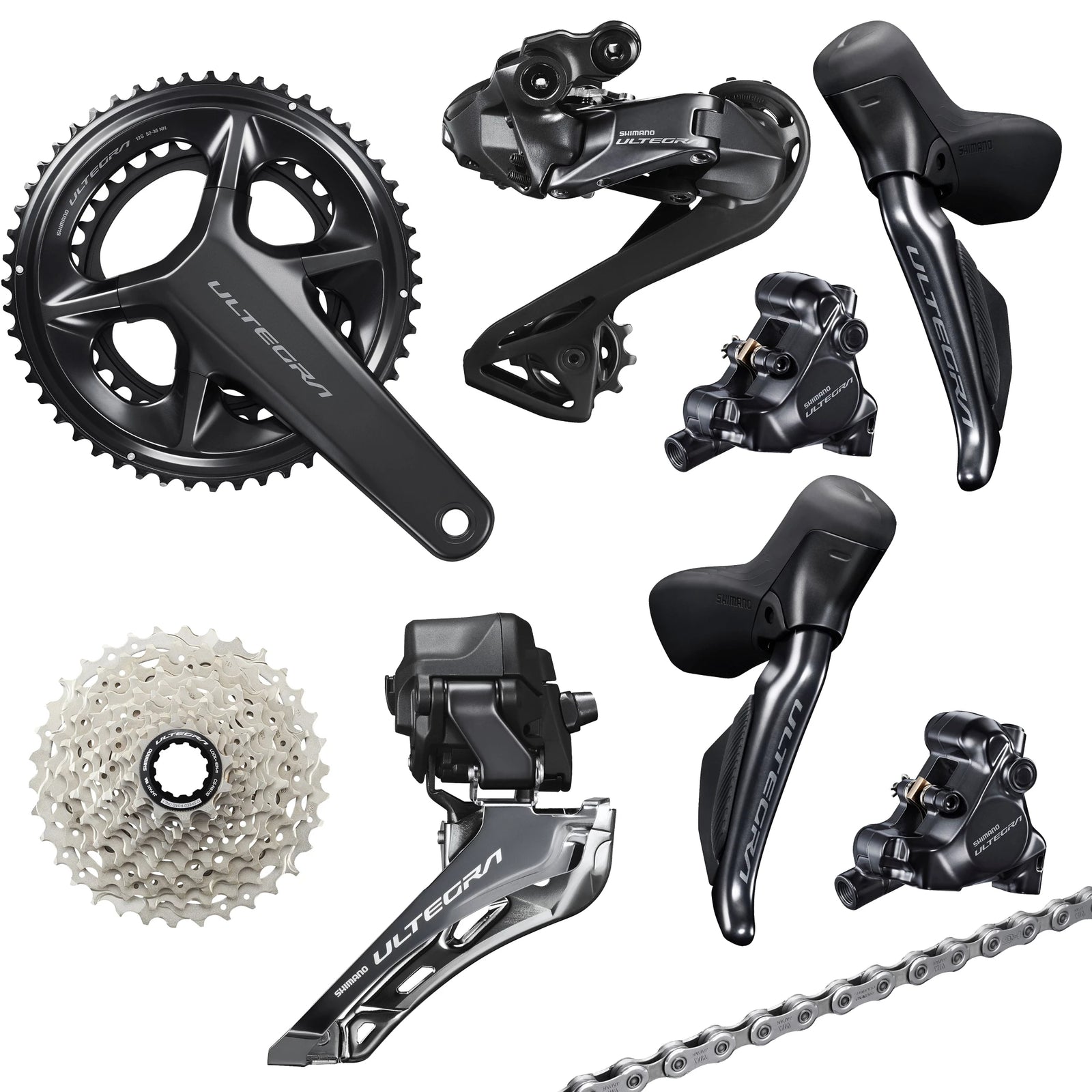

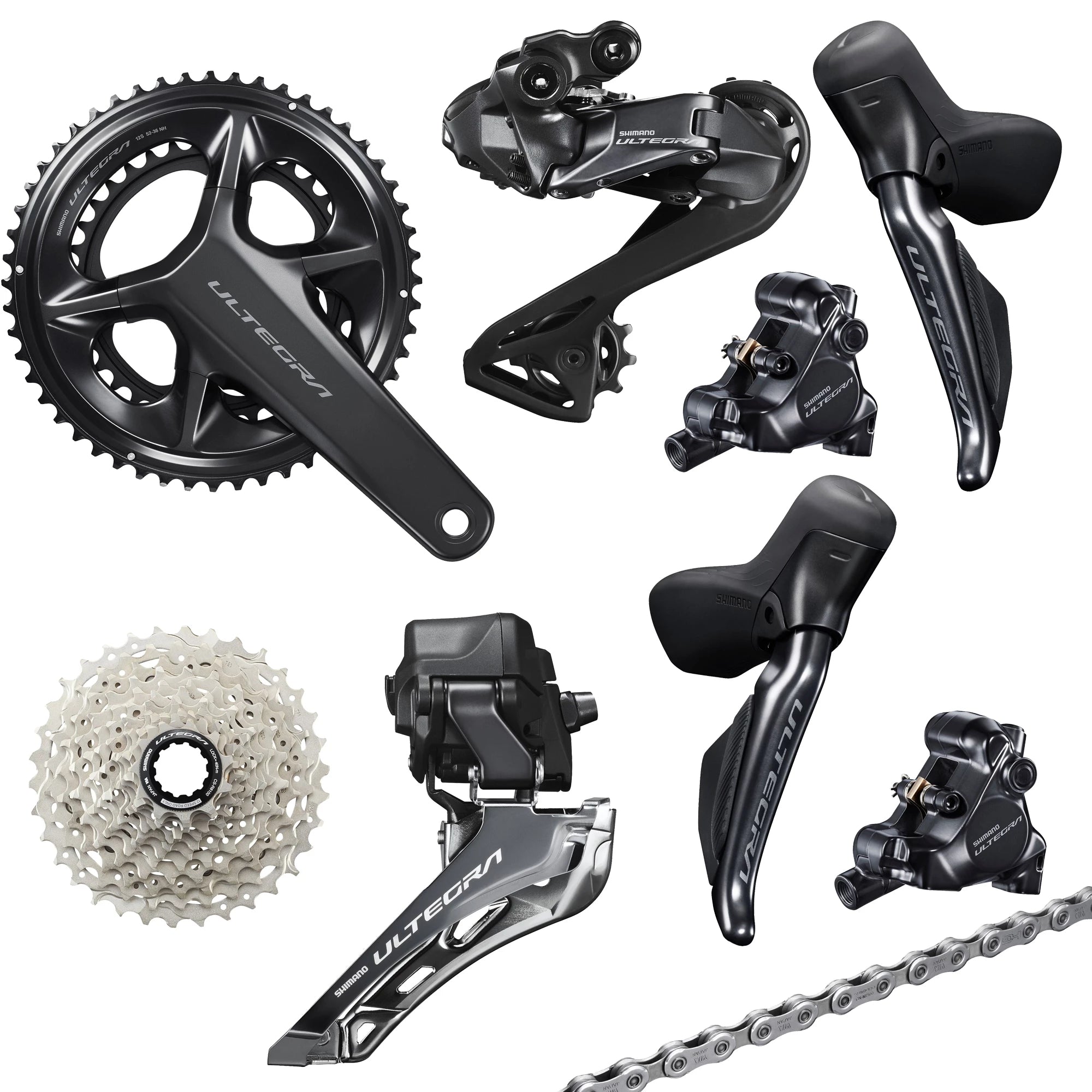

Shimano Ultegra 12 Speed 8170 Disc DI2 Groupset

• With technology trickling down from flagship Dura-Ace, Shimano's Ultegra R8170 Di2 Disc Groupset is better than it has ever been before. It perfectly balances performance with value, and the components are slick, reliable, and only create a minimal weight penalty compared to Dura-Ace.

  Shifting is flawless, and faster than previous iterations, while operating almost silently. This is thanks to Hyperglide+ tooth profiles, meaning that the chainrings and cassette have an improved connection with the chain, essentially improving shifting under load, across the cassette. Adding in a 12th sprocket, progression through the gears is smoother too.

  Braking is equally impressive, and redesigned calipers provide more clearance between rotor and pad, reducing rubbing and scraping noises frequently heard in wet or gritty conditions. Servo Wave levers, which have been redesigned for improved ergonomics, speed up the initial travel so pad and rotor meet sooner, creating a more progressive feel.

  Aesthetics are sleek, with the semi-wireless system eliminating wires from shifters to derailleurs. The battery remains mounted in the seatpost or seattube, and this is wired to the derailleurs, while the charge port is now incorporated into the rear derailleur, so there is no junction box required. CR1632 coin cell batteries in the shifters provide 1.5 to 2 years of life and easy access to the port on the rear mech makes charging the rest of the system easy.

  There are plenty of configurations to choose from, including various crank lengths and both mid-compact and compact chainrings, making this groupset a fantastic option for the majority of riders looking to upgrade their bike to an electronic system.

  INCLUDES

  • Shimano Ultegra Di2 ST-R8170 hydraulic disc, Di2 E-tube STI set, flat mount calipers, left/rear and right/front

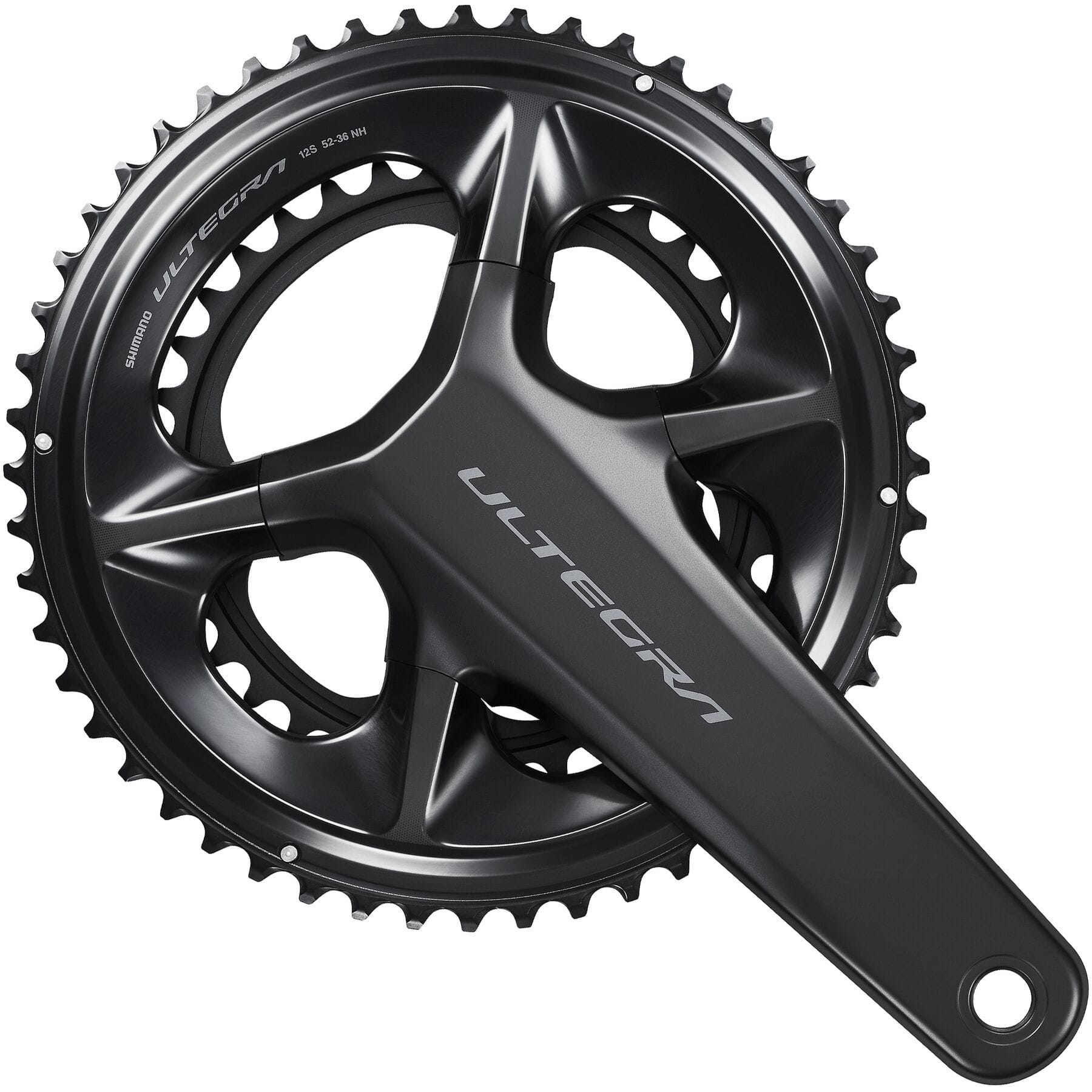

  • Shimano Ultegra Di2 FC-R8100 12-speed double chainset
  • Shimano CS-R7100 105 12-Speed Cassette 11-34T (11-30 available)
  • Shimano SLX/105 CN-M7100 chain with quick link, 12-speed, 126L

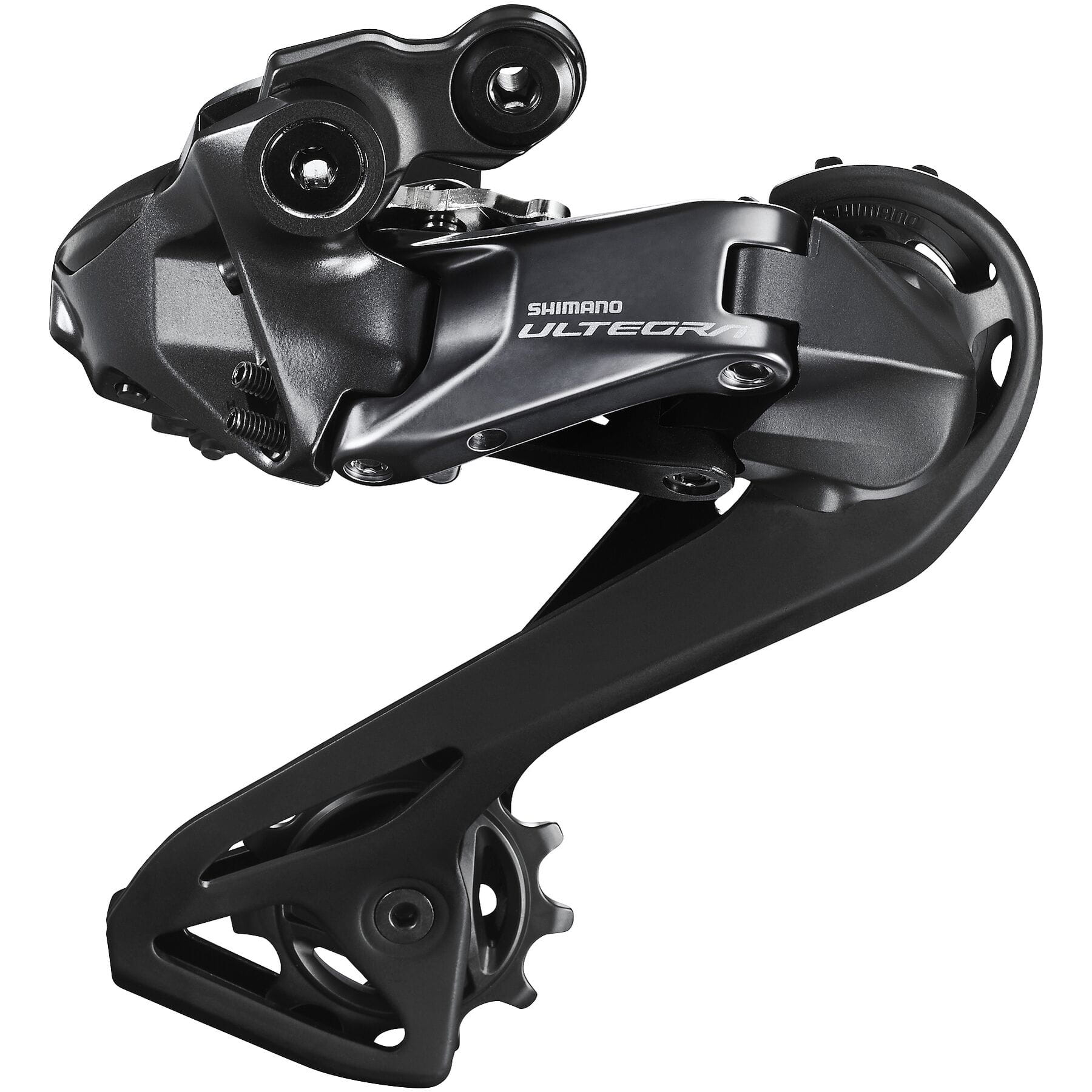

  • Shimano Ultegra Di2 RD-R8150 12-speed rear derailleur, E-tube

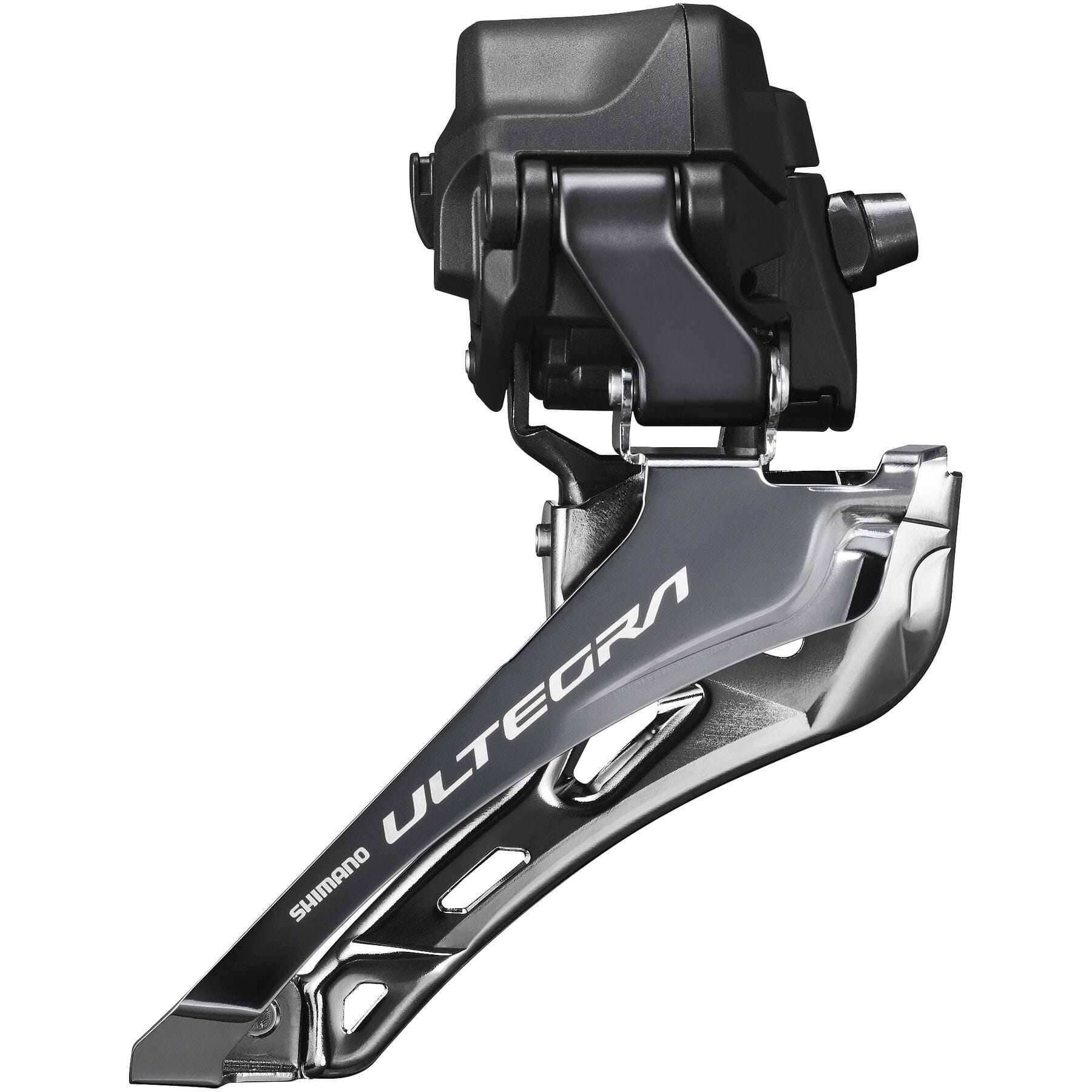

  • Shimano Ultegra Di2 FD-R8150 12-speed front derailleur E-tube, braze on, double

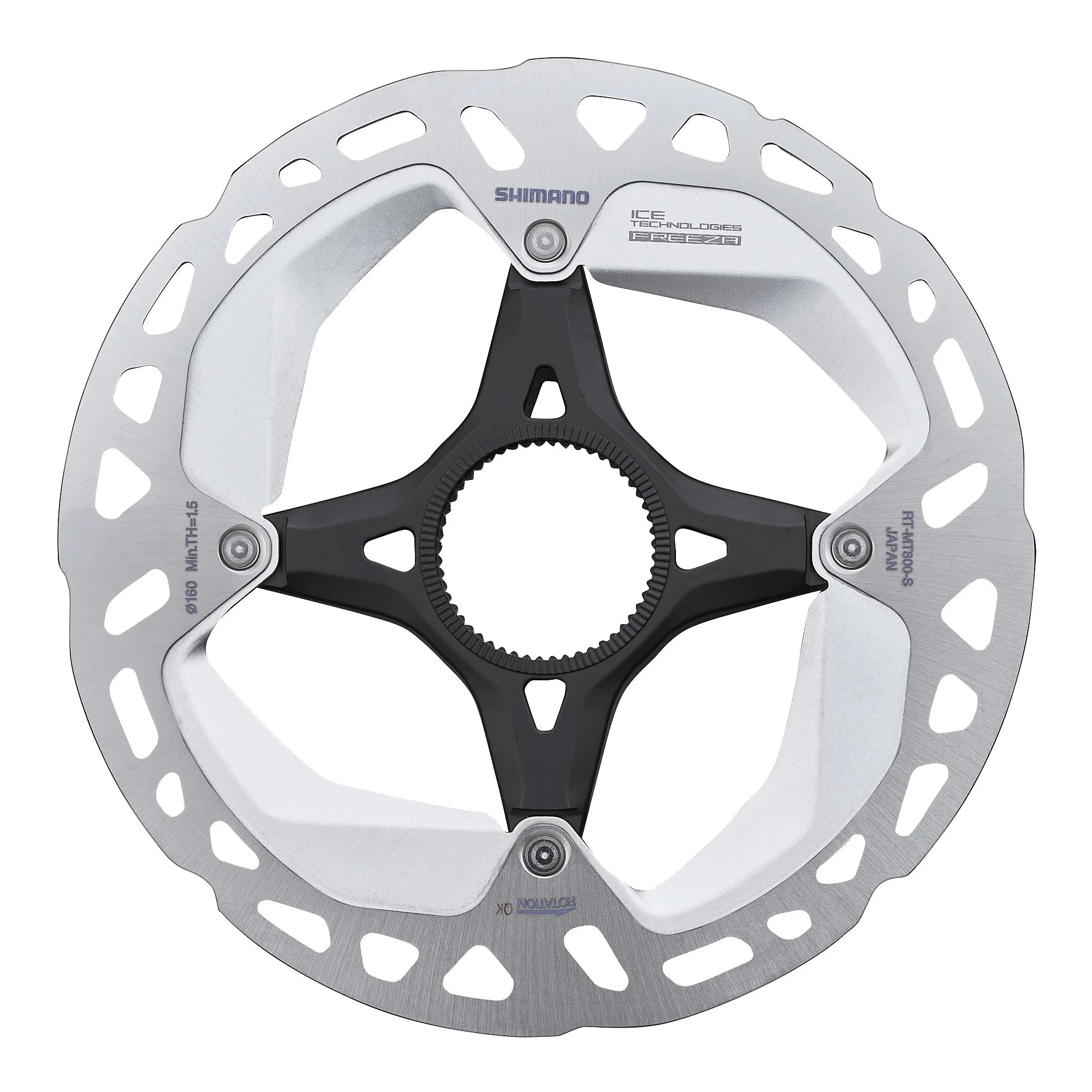

  • RT-CL800 disc rotors with internal lockring, Ice Tech FREEZA, 160mm (140mm available)

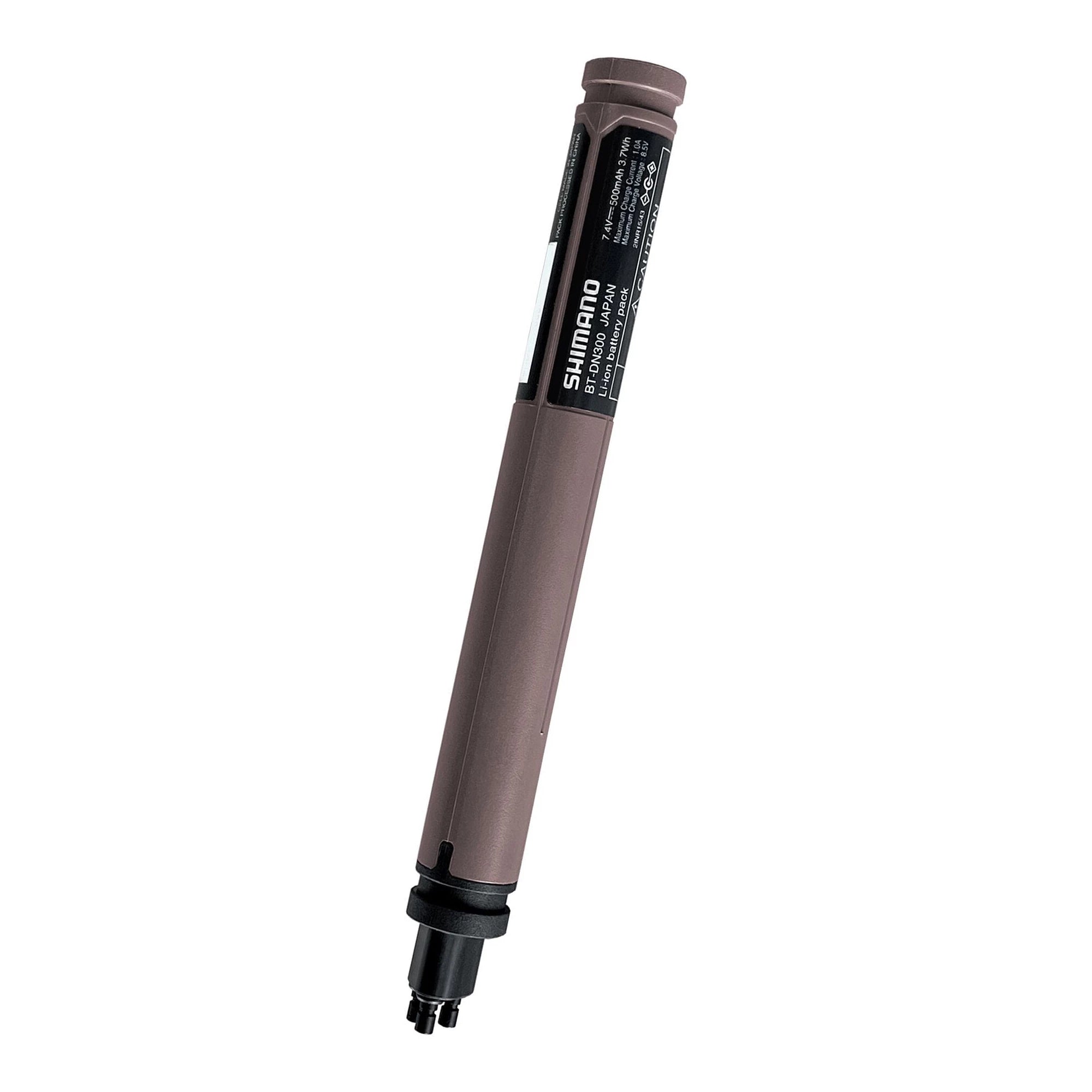

  • Di2 BT-DN300 internal mount battery, 3-port

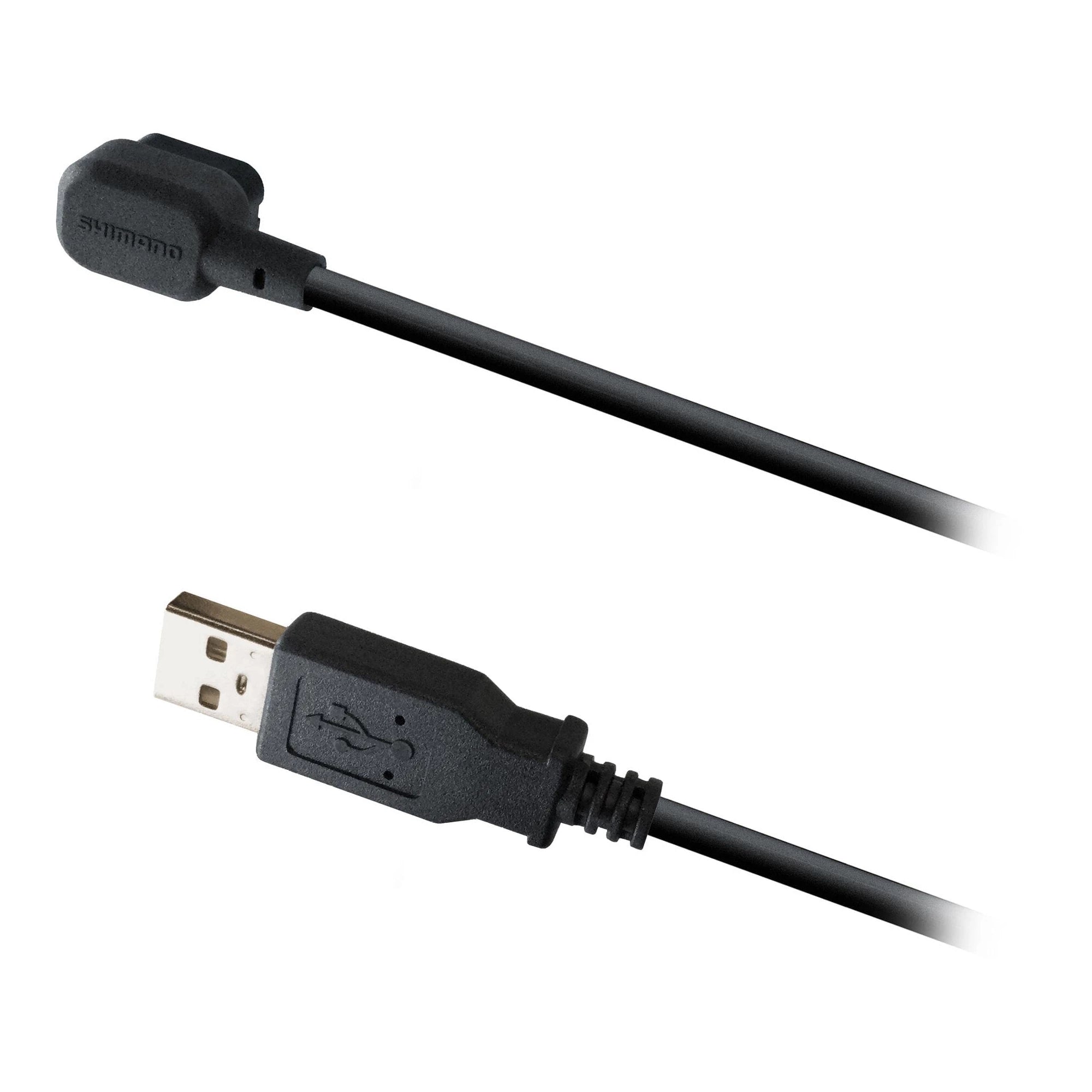

  • EW-EC300 battery charging cable, 1700mm

  • E-WIRE front and rear DI2 cables (700mm)
  • This groupset excludes bottom bracket.



  FEATURES

  • 2x12-speed, disc brake, semi-wireless electronic groupset
  • Rear derailleur is quick, smooth and effortless, for unmatched drivetrain efficiency
  • Rear derailleur's compact design includes an integrated wireless unit, charger, and switch
  • Button on the rear derailleur for Di2 operations, and LED light denotes synchronised shift mode, setting mode and charge requirements
  • Rear derailleur wirelessly connects to the shifters
  • Low profile Shadow derailleur design
  • Ultegra wireless hydraulic Servo Wave disc brake Di2 STI levers give you control, modulation and power with minimal effort in all riding conditions
  • Levers use CR1632 batteries which last for approximately 1.5-2 years
  • Improved ergonomic design
  • Hyperglide+ technology in the sprockets and chain improves shifting under load
  • XT rotors have a stainless steel / alloy 3-layer sandwich construction that manages heat
  • 12-speed E-tube Di2 compatible

If you want any changes to the groupset, please contact us to discuss options.

Groupsets are ordered from supplier warehouse and usually dispatched to you within 3 working days of ordering.
